QC Industries conveyors are the ultimate "user-friendly" conveyor. Hi-tech features like Pivot? rotatable drives, Tension Release? tool-less belt changes, and a moveable center drive were designed to make your job easier and give you more time to focus on things other than conveyors.

QC Industries Logo

These conveyors have been designed from the ground up with performance and versatility in mind.

Automation Series

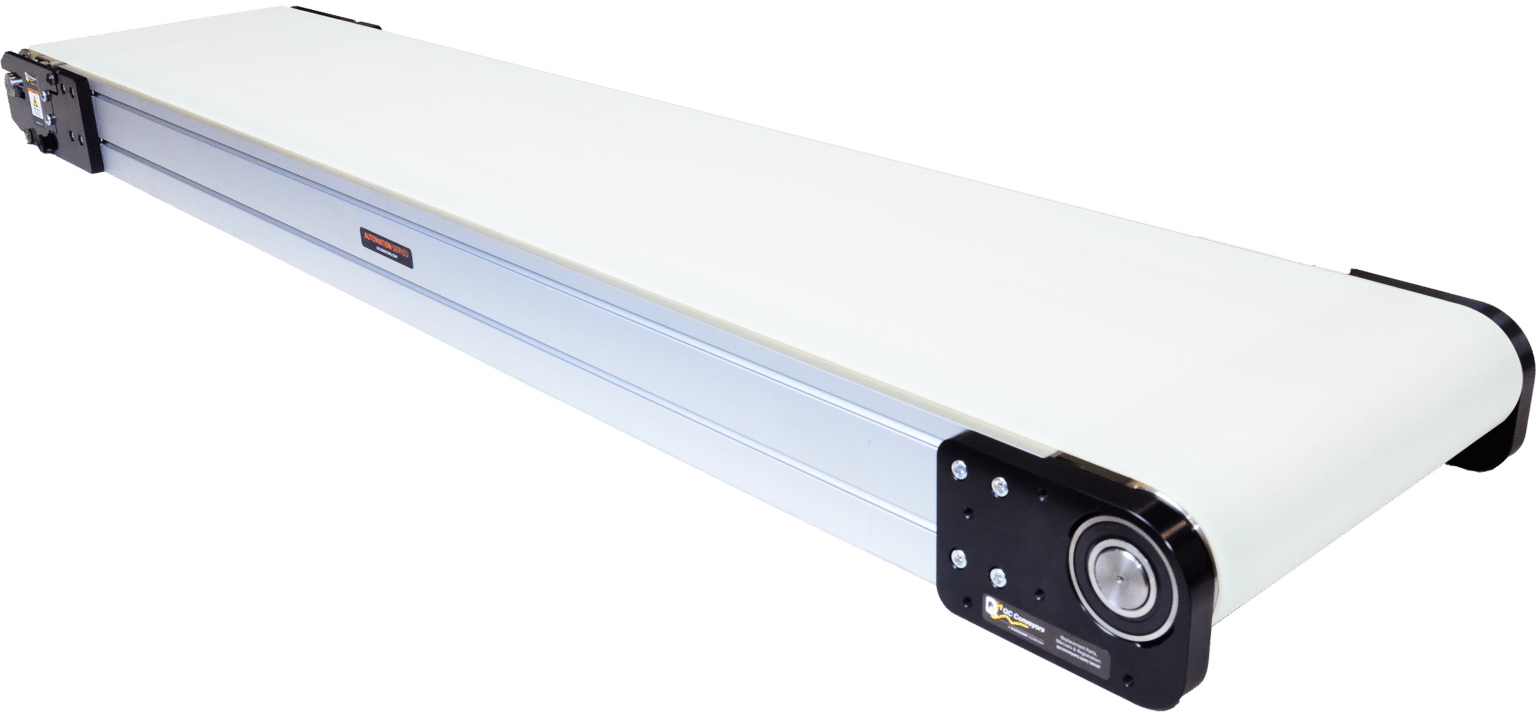

AS40 End Drive Belt Conveyors

End Drive Conveyors are ideal for almost any application. They offer our widest variety of drive packages, including the incredibly versatile Pivot? rotatable drive.

QC Industries Automation Series

AS40-CD Center Drive Belt Conveyors

Center Drive conveyors are ideal for applications where both ends will be integrated with other machines. The drive package is completely below the belt and can be moved to any point on the frame to clear obstacles. Return idlers are easily removed for rapid belt changes without removing the drive.

QC Industries Drive Belt Conveyors

AS40-Z Angled Frame Conveyors

AS40-Z conveyors enable elevation changes that aren't possible with a flat conveyor. these conveyors are available in three configurations for any elevating or lowering application. The L is a horizontal to inclined configuration and the R is inclined to horizontal, while the Z is horizontal to inclined to horizontal.

QC Industries Angled Frame Conveyors

Industrial Series

IS175-ID

By moving the drive motor inside the conveyor pulley, IS175-ID Conveyors offer significant space savings over traditional conveyor drive packages. With a profile of only 2.54", InnerDrive Conveyors can fit almost any application.

QC Industries Industrial Series

IS125 Series Low Profile Conveyors

The IS125 Series line of conveyors from QC Industries feature a very low profile (1.89"), allowing these unique conveyors to be used in tight quarters where conventional conveyors will not fit. Belt widths of 2" to 24" are available, in lengths from 2 feet to 12 feet, with load carrying capacity of up to 450 pounds.


QC Industries 125 Series Low Profile Conveyors

IS125-FT Plastic Chain Belt Conveyors

IS125-FR Conveyors are available in lengths up to 30' and widths from 4" to 24". They offer high speeds - up to 375 fpm - and heavy load carrying capacities - up to 500 lbs. These conveyors offer a very low profile - a maximum 3.03" at the drive end, with the remainder of the conveyor only 2.41" high. These sleek, quiet conveyors feature industry-standard 1" pitch belts for maximum compatibility with existing plastic chain applications.

QC Industries Flextrac Plastic Chain Belt

IS300 Series Indexing Conveyor

The IS300 series provides precision indexing tolerance to register a part to within ?.015" without sensors. With high speeds up to 2000 fpm with ramp up/down capacity and custom molded cleats  to integrate perfectly with your part or application.

QC Industries 300 Series Indexing Conveyor

IS400 Series Heavy Duty Conveyor

Heavy duty load carrying capacities of the IS400 Series allows you to move heavier loads longer distances. Providing widths beyond 36" and lengths beyond 50 ft. this low profile conveyor is only 3" high and offers high speeds in excess of 400 fpm.

QC Industries 400 Series Heavy Duty Conveyor

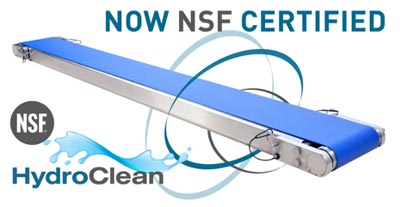

HC200 HydroClean - Now NSF Certified

The HC200 Conveyors recently received certification from NSF International, making them the first low profile belt conveyors with such a distinction.NSF is among the world's most respected independent certification organizations. They have verified that HydroClean Conveyors comply with NSF/ANSI 2 standardsfor sanitary equipment, such as minimal horizontal surfaces where water can collect, no exposed threads, and the use of hex head fasteners. All of these features are designed to eliminate opportunities for bacteria growth.

To meet sanitary standards, equipment must also be easy to clean with common hand tools ? a requirement we surpassed by designing a conveyor that requires no tools to disassemble for routine, in place cleaning.

In order for a HC200 conveyor to be NSF certified, it must use either a sealed edge belt (PVF or MVG) or fully encapsulated belt (KVA or KVB). In addition, it must be ordered with a standard-duty, washdown-capable AC gearmotor.

NSF Certified conveyors will be delivered with the NSF logo on the serial number label to indicate compliance. These conveyors are also BISSC Certified for the baking industry.

QC Industries 400 Series Heavy Duty Conveyor

This video shows how easy it is to disassemble the HydroClean Conveyors for cleaning

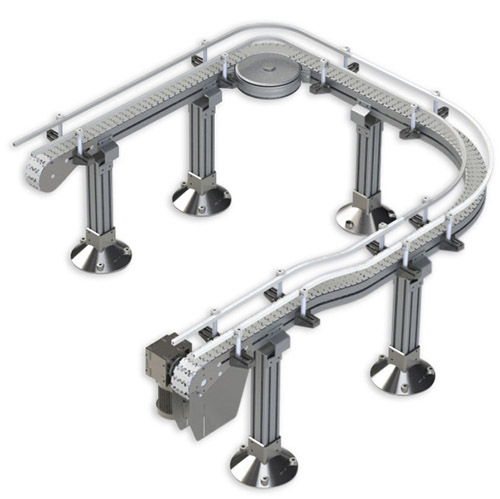

Flextrac Modular Plastic Chain Conveyor

QC Conveyors Flextrac Series Conveyor Systems demonstrate flexibility with sturdy, modular conveyors capable of inclines, declines, straight sections and curves.They can be configured to meet the needs of almost any application, including gripper elevators and alpine conveyors. Thanks to their modular design, they can be reconfigured as your plant changes and grows.

Flextrac Series modular design can change and adapt as you make changes to your plant and application by simply adding, removing or reconfiguring components.



Flextrac Conveyor
