Hiwin

HIWIN Corporation is a global manufacturer and distributor of Linear Motion Control products including Ballscrews, linear guideways, linear actuators, linear motors, single axis robots, AC Servo motors & Drives, Positioning Measurement Systems and Crossed Roller Bearings

Products

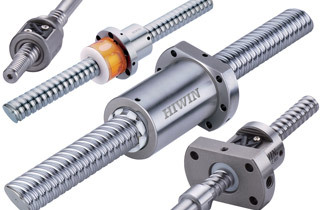

Ballscrews

Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. Hiwin Corporation provides a wide range of ballscrew configurations to satisfy your special application requirements. Hiwin has the capability of producing JIS C0 class ground ballscrews, and DIN 5 class (up to 23 microns) for precision rolled ballscrews. Ballscrew O.D. ranging from 4mm to 120mm, and with Dm-N values up to 220,000

ballscrews

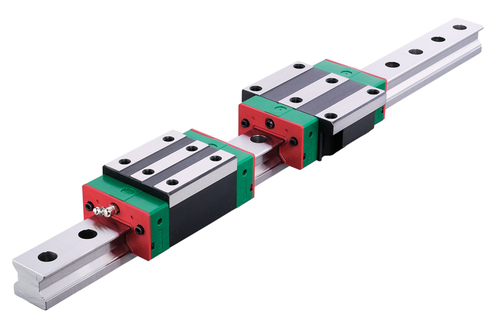

Linear Guideways

Linear guideways provide a type of linear motion that utilizes re-circulating rolling elements between a profiled rail and a bearing block. A linear guideway can achieve high precision and greatly enhanced moving accuracy. Hiwin Corporation offers multiple linear guideway series and each series features different options for sizes, loading capabilities, accuracies, and more.

linear-guideway

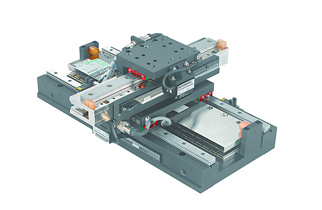

Linear Motors

HIWIN Corporation linear motors are direct drive, plug and play solutions. Linear motors are capable of fast accelerations and high speeds, while providing unmatched precision and accuracy. Aside from single axis linear motors, these stages can be combined together to form cross tables or even gantry systems.

linear-motors

Standard Stock Ballscrews

HIWIN Corporation offers a wide range of preloaded and non-preloaded rolled ballscrews, in-stock at our U.S. headquarters in Elgin, IL. Customers can take advantage of having their ballscrews machined at our state-of-the-art facility or have standard length, un-machined ballscrews shipped within 10 business days

standard-stocked-ballscrews

Linear Actuators

Hiwin Corporation can supply a complete actuator solution that includes actuators, controllers and keypads for a single or multiple axis system. Hiwin offers a wide range of linear actuator designs to fit your specific application.

linear-actuators

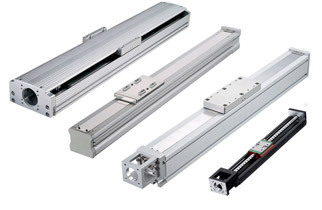

Single Axis Robots

HIWIN Corporation's single axis robots utilize a combination of a motor driven ballscrew or belt and linear guideway system. These compact and lightweight units are customizable and can be easily transformed into a multi-axis system, making them suitable for a wide range of industrial applications.

single-axis

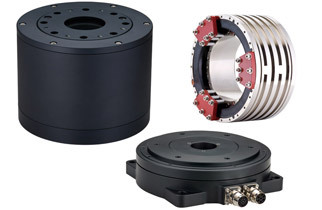

Torque Motor Rotary Tables

HIWIN Corporation torque motor and rotary tables ensure excellent acceleration capabilities and high precision uniform movements. Hiwin torque motor and rotary tables are backlash free, extremely rigid, optimized for high torques, have robust dynamics and are especially well suited for tasks in a wide range of automation processes. Various sizes in diameter and height are available with the option to add a servo drive for a complete plug and play solution.

torque-motor

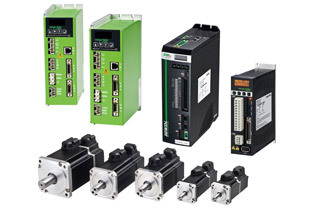

AC Servo Motors and Drives

HIWIN Corporation offers AC servo motors and stepper motors, which when combined with Hiwin's product line are great solutions for converting rotary motion into linear motion. These motors complement our product offerings and can be a complete linear motion solution when our servo drive is incorporated. HIWIN's servo drive solution is compatible with: high performance drives for linear motors, shaft motors, torque motors, and AC servo motors.

ac_servo_drives

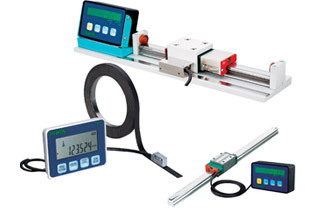

Positioning Measurement Systems

HIWIN Corporation's positioning measurement system integrates a linear guideway with a magnetic encoder. This solution offers the high stiffness and rigidity of a guideway combined with the high precision of a magnetic encoder. The encoder is a non-contact measuring sensor and the magnetic strip is embedded to prevent possible damage caused from external debris, these features ensure a longer service life.

measurement

Solutions

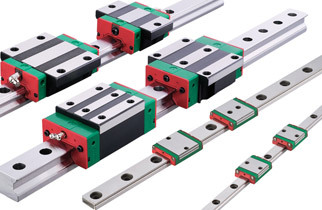

AIR HYDRO POWER WILL CUT TO LENGTH!

Air Hydro Power has the ability to cut linear guideways to the exact length to fit your needs IN HOUSE. Need a guideway trimmed down? We can do it QUICKLY!

linear_guideways_solution

Videos

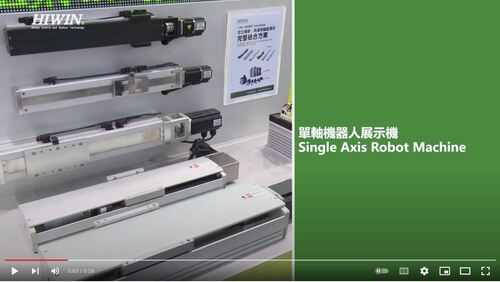

Single Axis Robot

Surface Mining Hose Video
Increasing a systems productivity and efficiency!
