Bimba provides industry leading pneumatic systems, hydraulic systems, and fluid systems that are easy to use, reliable, and ready for your engineering challenges. A pioneer in pneumatic actuation, driving actuator technology and innovating customer experience. improve your products, processes, and systems with automation components from Bimba.

Featured Products

Bimba ISO 6431 (15552) VDMA 24562 with Rod Lock - Model ABRL

Rod Lock Series ABRL allows the mechanical locking of the piston rod in any position along the stroke. The Rod Lock is activated upon the loss of operating pressure. The ABRL is available in six bore sizes: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm with stroke lengths from 1mm up to 2800mm and holding forces up to 1217 lbs.

Contact Us

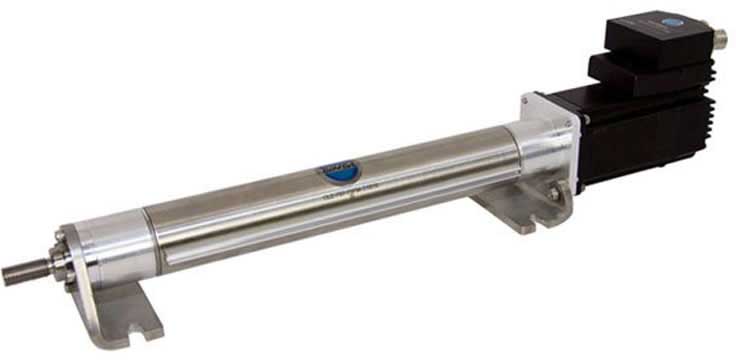

Bimba Original Line Electric® - OLE

The Bimba Original Line Electric® Actuator is designed, built, and tested to provide the longest life, greatest durability, highest speed, and greatest thrust per dollar. They are ideal for applications requiring greater control for enhanced flexibility.

Contact Us


Pneumatic Actuators

Bimba offers an industry leading selection of bore sizes for pneumatic actuators. As the originator of the first non-repairable cylinder, with 12 bore sizes Bimba's Original Line® has set the industry standard for non-repairable, stainless steel cylinders.

  • Round Line
  • Compact
  • NFPA
  • Guided Thrusters
  • Rodless
  • Rotary

Electric Actuators

Bimba's Electric Actuator line provides precise control of motion through both custom and off-the-shelf designs. The Bimba Original Line Electric® actuator is designed, built, and tested to provide the longest life, greatest durability, highest speed, and greatest thrust per dollar. They are ideal for applications requiring greater control for enhanced flexibility. Many mounting, motor, performance, and custom options are available to suit your application needs.


TRD Hydraulic Actuators

Bimba | TRD builds hydraulic cylinders with a variety of NFPA mounting options and leads the industry in delivery time. TRD's hydraulic cylinders have a 3000 PSI pressure rating; some NFPA mounts are rated lower for safety. A floating rod bushing (used in other designs) provides trouble free operation and long life. NFPA dimension design interchanges with competitive models.

  • Bore Sizes: 1-1/2", 2", 2-1/2", 3-1/4", 4", 5", 6", 8"
  • Precision machined to order
  • Hydraulic operation from 675 to 3000 PSI (depending on bore size)
  • Eighteen different NFPA mounts to choose from
  • Delivery in 2-3 days

Mead Pneumatic Valves

Bimba | Mead offers standard pneumatic valves, binary valves, solenoid valves, foot, hand, or button valves, and custom valves designed for your specific application.

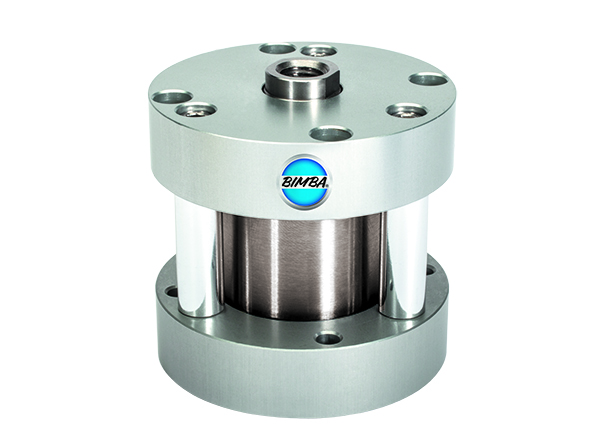

Flat-1 Cylinders

Flat-1® cylinders have been redesigned to include a number of new features and new catalog standard options. New features include permanent grease lubrication, standard hard chrome plated piston rods, and an improved bumper design. New standard options are available in the catalog as well, including metallic rod scrapers, low pressure hydraulic designs, and a standard mounting hole interchange for another compact cylinder manufacturer. Optional body and bearing materials have also been added to provide the outstanding option breadth that Bimba is known for in a high quality, compact cylinder design.

  • Permanent grease lubrication and rated for 3,000 miles of travel with L Option seals
  • Hard Chrome plated piston rods improve rod seal life and performance
  • Re-engineered bumper design maximizes bumper performance and life
  • New thick walled aluminum and composite cylinder bodies are optional for unique applications

MACQ Series

This medium-duty, extruded-aluminum-body, compact industrial pneumatic cylinder is offered through our MFD partnership. It's streamlined look offers a low cost, low profile option which is an excellent choice for space saving designs. Integrated switch profile grooves come standard for easy switch mounting.

  • Bore sizes of 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm available
  • Up to 12 standard stroke lengths (stroke length availability varies by bore size)
  • Pressure Range: 15-145 PSI
  • Port Sizes available M5X0.8, 1/8 NPT, 1/4 NPT, 3/8 NPT (varies by bore size)
  • Magnets available
  • All "in-stock" items ship the same day

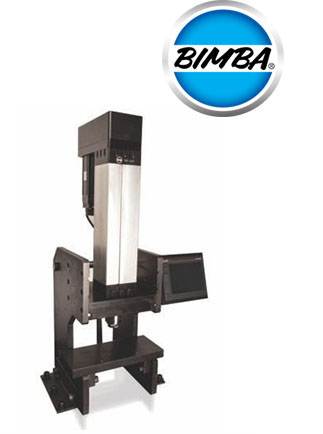

IntelliPress™ Electric Bench Top Press

The Intellipress™ bench top electric press complements Bimba’s hydraulic and pneumatic presses, providing complete control over process speed, pressing force and home position location. The IntelliPress offers high performance at a low price. Three press sizes are offered and can provide compression or tension force for your application.

  • Fully electric, energy efficient design
  • Three press sizes with force ranging up to 12,000 lbs
  • Ball screw driven electric actuator can accurately apply force in either direction
  • Infinitely variable position control within stroke range
  • Pre-programmed and easy-to-configure operator interface
  • Optional loadcell for both tension and compression applications

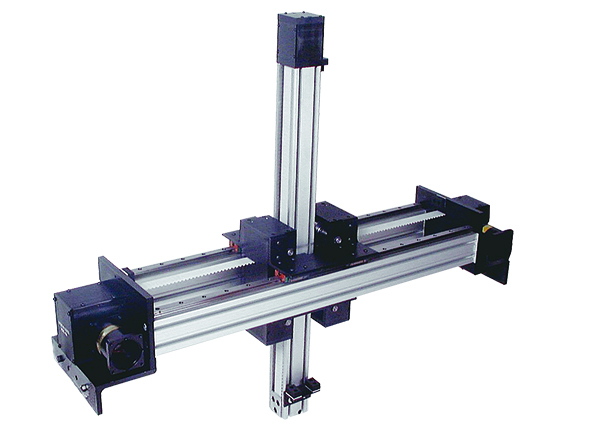

IntelliAxis® T-Bot

The multi-axis HSXZ series electric belt drive actuators offer 2-axis linear motion control using a unique single belt transport system that serpentines around both the X and Z axes which eliminates the need for a motor in the Z-axis while using two coordinated motors in the X-axis. Advantages and benefits include coordinated motion control for complex motion profiles including circles, ellipses, and sine waves.

  • High Precision Steel Reinforced Arc-Belt Power Design
  • Ideal for High speed applications
  • Zero backlash
  • Self-aligning
  • Built-in Linear Ball Rail Guide
  • Precision to 0.001"
Bimba-T-Bot Bimba-H-Bot

AIROS™ Air Preparation Equipment

Bimba offers two distinct lines of AIROS™ air preparation equipment: the legacy MG (formerly MFD) series and the new PG series. The MG Series is cost-conscious, standard air preparation, perfect for baseline pneumatic circuits. The PG Series features a high-quality design and performance and can be mounted in a smaller package than similar products!


  • MG and PG series filters keep compressed air clean and protect pneumatic components by removing airborne contaminants
  • Modular MG and PG units allow you to build the exact system your application requires
  • MGFC and PGFL coalescing filters protect extra sensitive equipment by removing microscopic particles down to 0.01µ and oil down to 0.1 mg/m³


  • Control compressed air pressure and minimize air loss throughout a pneumatic system
  • MGR and PGR modules utilize push-to-lock knobs to maintain desired output pressures
  • Integrated pressure gauges on MGR and PGR units provide enhanced visibility and ease of use


  • Lubricate compressed air and connected pneumatic components for improved operation and optimized machine life
  • Standard MGL and PGL oil mist lubricators can be installed in-line or directly to other air prep equipment
  • PGL available with high visibility prismatic metal and lightweight polycarbonate bowls

Combination Units

  • Integrated MGFR and PGFR series filter-regulator units provide the same filtration and regulation capabilities in a smaller footprint
  • Pre-assembled MGFC and PGFC series filter-regulator-lubricator units come fully assembled and ready to go, allowing for quicker installation and less downtime

Soft Start Valves

  • Solenoid actuated with integrated soft start
  • SCSQ10 models slowly bleed compressed air into the air line upon start-up until the desired pressure is reached, preventing excessive noise and component damage
  • Redundant valve assembly and self monitoring with integrated safety muffler
AIROS-Filters AIROS-Regulators AIROS-Lubricators AIROS-Combos AIROS-Soft-Start
